CN PRO
NEW9830

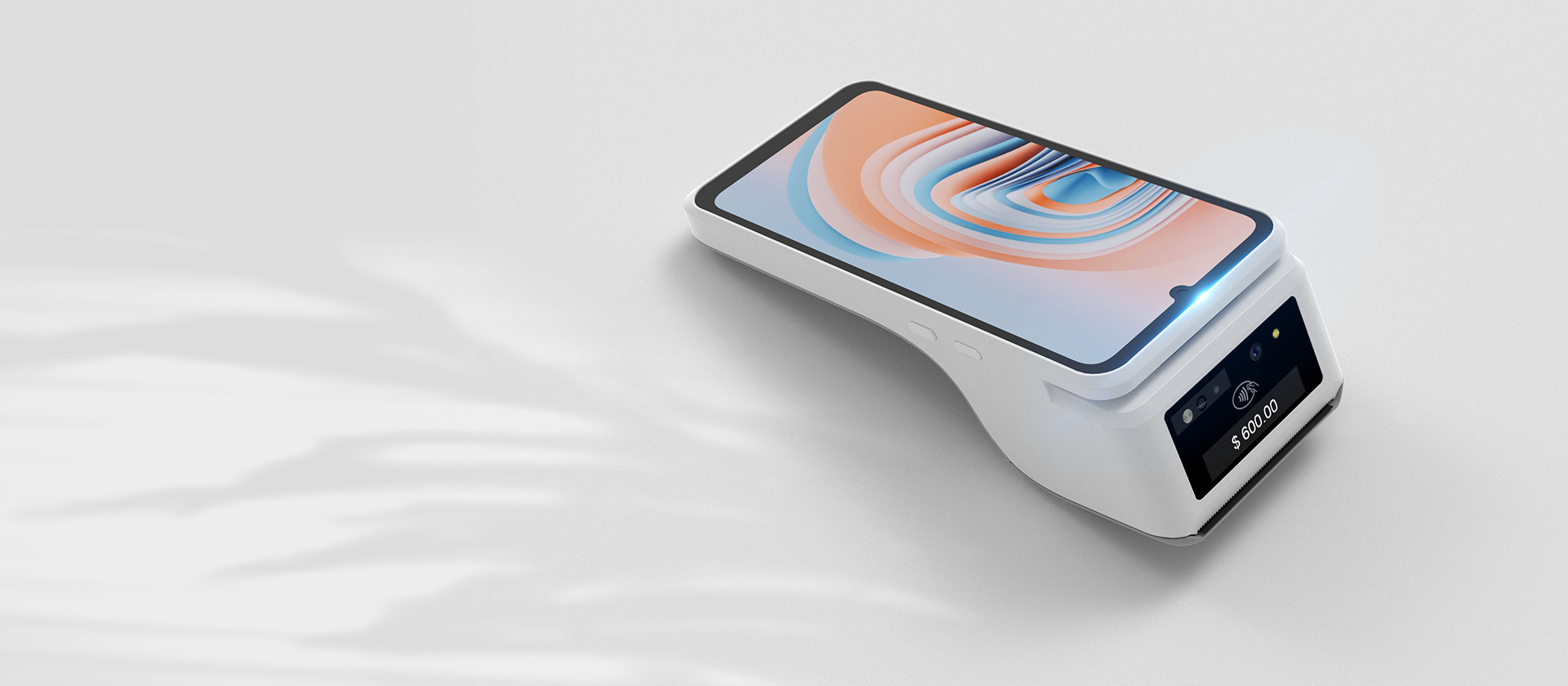

Smart POS Terminal

One device to solve all your payment needs




CPU
Lowest Cortext-A53 Quad Core 2.0GHz CPU
  • OS
    Android 13
  • Memory
    Maximum RAM 4GB
    Maximum Flash 64GB
  • Bigger Screen
    6.745-inch HD+, 1600x720
  • Large Capacity Battery
    7.7V/3420mAh
Latest Generation Performance
NEW9830 is equipped with at least ARM Cortext-A53 quad-core processor with a speed of 2.0GHz. The memory starts at 2GB RAM + 8GB FLASH. It uses the latest Android 13 version. The performance of NEW9830 is excellent.

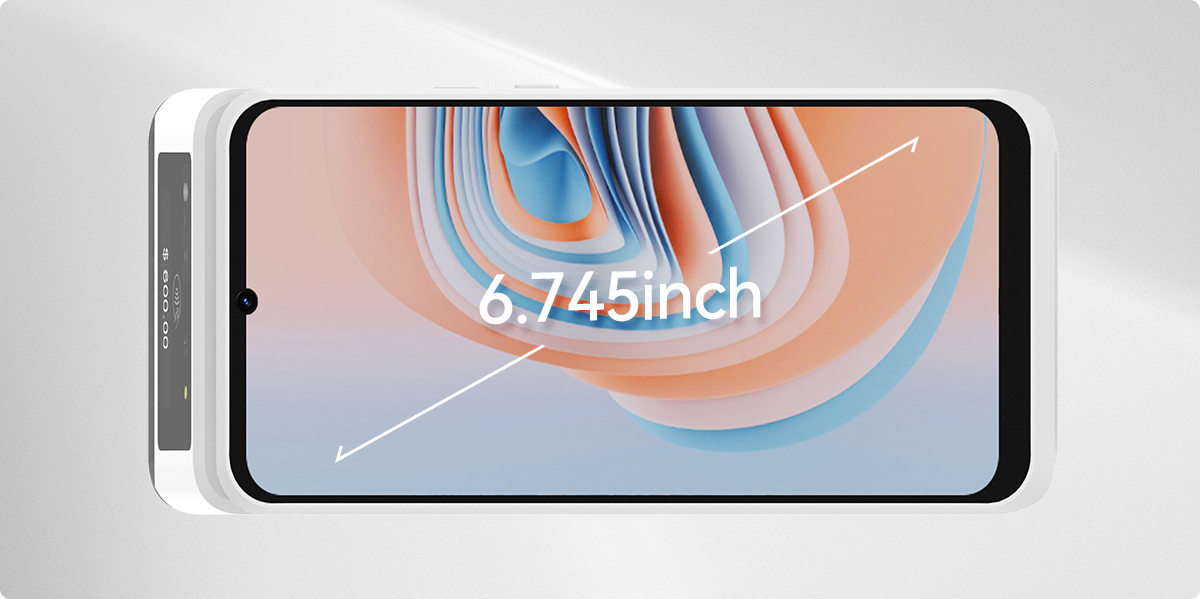

Maximum Screen Size
NEW9830 is the portable POS terminal with a 6.745” big screen to deliver extraordinary visual and operation experience.

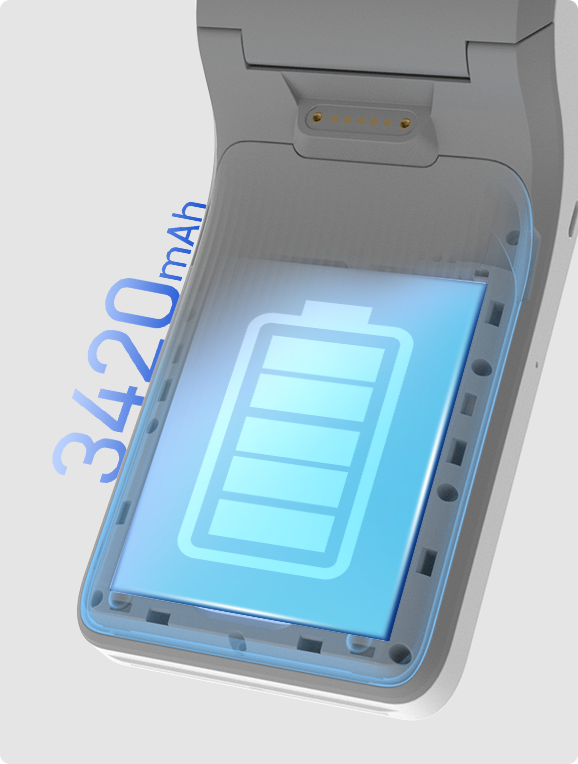

  • Large-capacity battery
    Upgraded to polymer battery, longer battery cycle life. The maximum capacity can be increased to 7.7V/3420mAh.

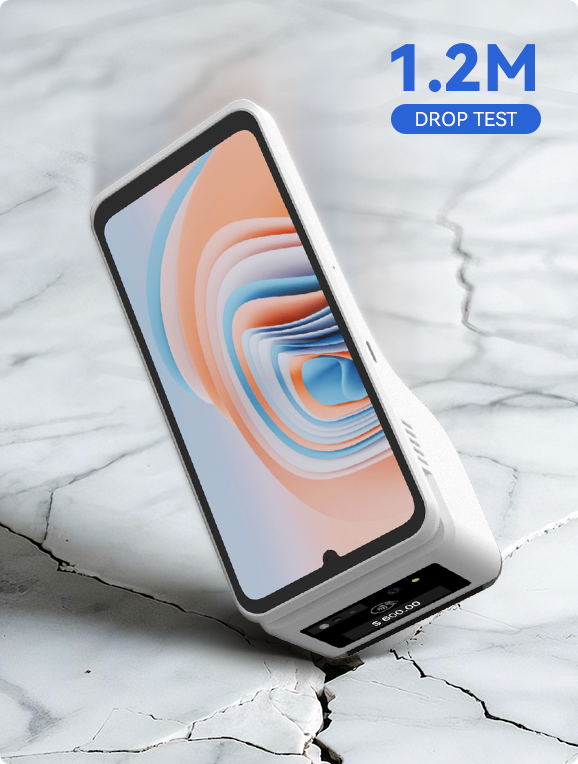

  • Built tough and drop-resistant

    This high-reliability design is ready for use in even the harshest environments.Successfully passed a 1.2M drop test on marble.

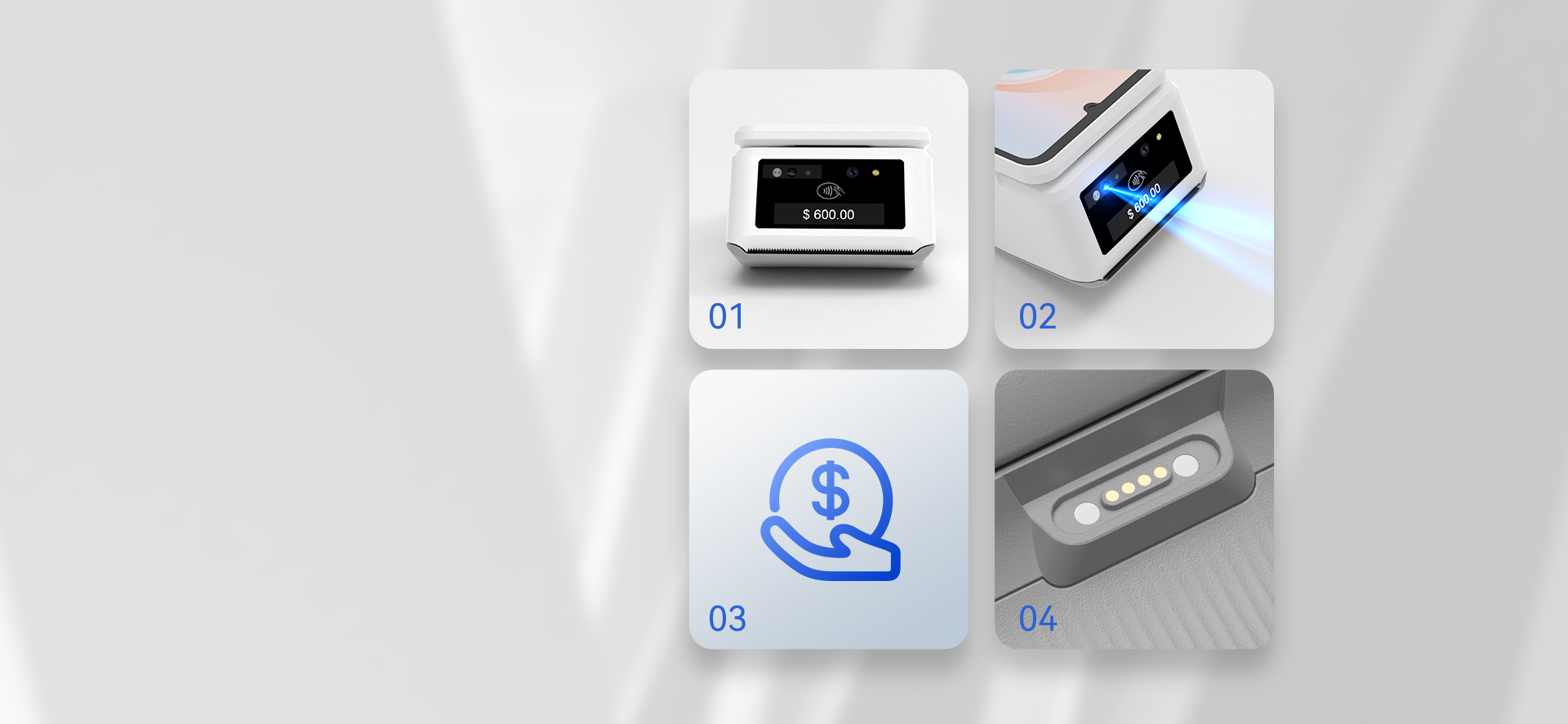

01、Customer Display

02、Scanning

03、Fiscal Module

04、Magnetic Charging

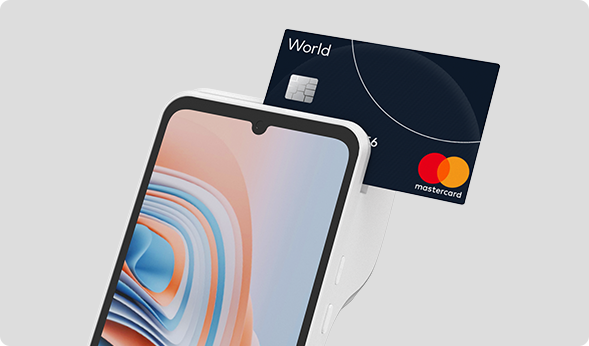

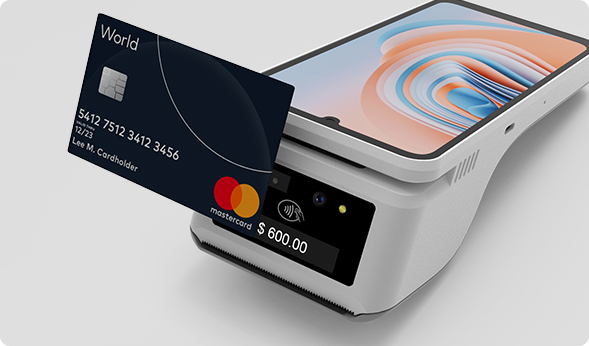

Supporting All Payments

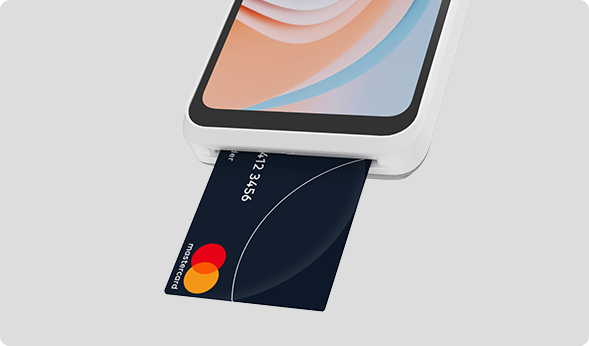

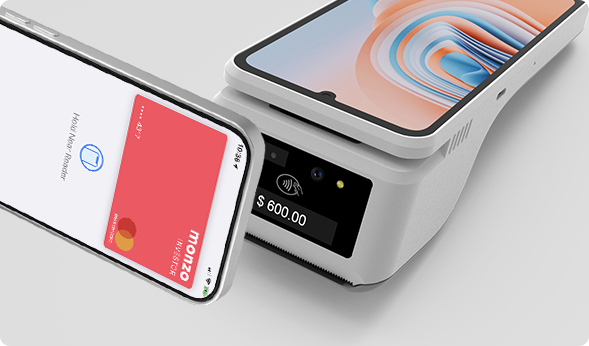

It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.
  • 1D&2D QR
  • IC Card
  • Magnetic Card
  • Mobile Payment
  • NFC
Flexible Adaptability
Restaurants, retail, banks, government, hospitals
Restaurant Hotels Banks Retail Hospitals
Technical Specifications
  • Processor
    Cortex A53 Quad-Core, 2.0GHz +
    Secure Processor
    Octa-Core, 4xA53 2.0GHz, 4xA53
    1.5GHz + Secure Processor
  • Memory
    2GB RAM + 8GB Flash
    2GB RAM + 32GB Flash
    Extended MicroSD Card Slot Up to 256GB
  • OS
    Asmart, Powered by Android 13
  • Displays
    Main Display: 6.745" IPS HD+, 720 x 1600 Pixels
    Multi-Point Capacitive Touch Screen
    Customer Display: Dot-matrix LCD, 130 x 32 Pixels
  • Scanner
    Top: 1D/2D professional scanner
  • Card Readers
    Magnetic Stripe | Chip & PlN |
    Contacless
  • Printer
    Speed: 80mm/sec
    Paper Roll Outer Diameter: 40mm
    Paper width: 58mm
  • Camera
    Front: 2MP Fixed Focus
    Front: N/A
    Top: 5MP Auto Focus, with Flashlight
    Top: 2MP Fixed Focus
    Top: 13MP Auto Focus, with Flashlight
  • Fiscal
    Fiscal Module
  • Wireless Communication
    2G/3G/4G
    Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
    Bluetooth5.0
  • Positioning
    GPS | GLONASS | BEIDOU | GALILEO
  • Card Slots
    2 Micro SIM + 2 Mini SAM + 1 Micro SD
    eSIM + 1 Micro SIM + 2 Mini SAM + 1 Micro SD
  • Battery
    1 Power ON/OFF，1 Function
  • Peripheral Ports
    1 USB Type-C OTG | 5 PIN POGO PIN for Base 1 USB Type-C OTG | 4 PIN POGO PIN for Magnetic Charging
  • Audio
    1 Speaker 1 Microphone
  • Certifications
    PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave | MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS
  • Accessories
    Charging Base Multifunction Base Magnetic Charging
  • Physical
    192.5 x 81 x 57mm, 430g (including 2500mAh battery)
  • Operating Environment
    Operating Temperature: 0°C~50°C (32°F~122°F) Relative Humidity: 5%~95% (Non-Condensing)
  • Storage Environment
    Storage Temperature: -20°C~60°C (-4°F~140°F ) Relative Humidity: 5%~95% (Non-Condensing )
